UniFi Outdoor Cable
$210.09
GST incl.

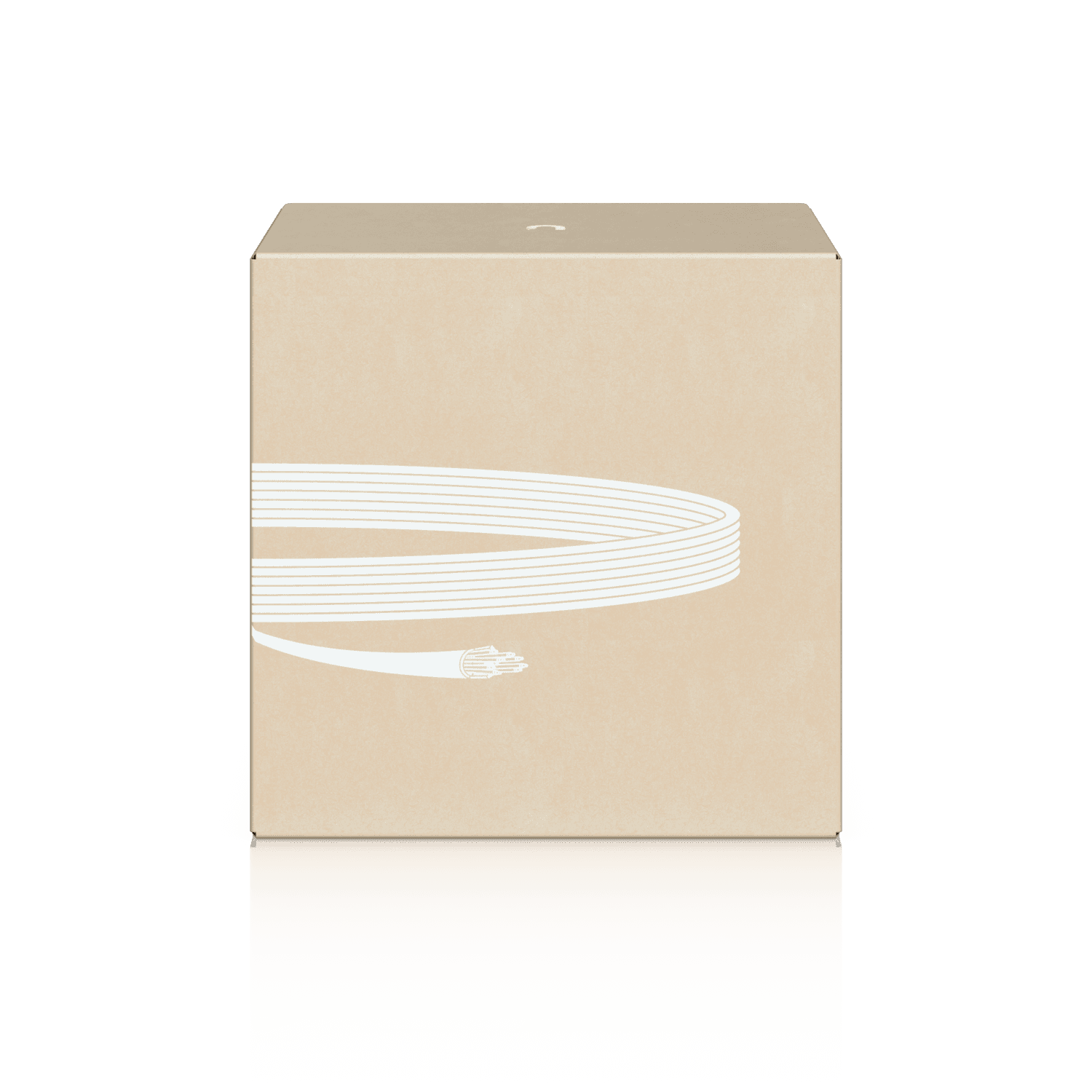

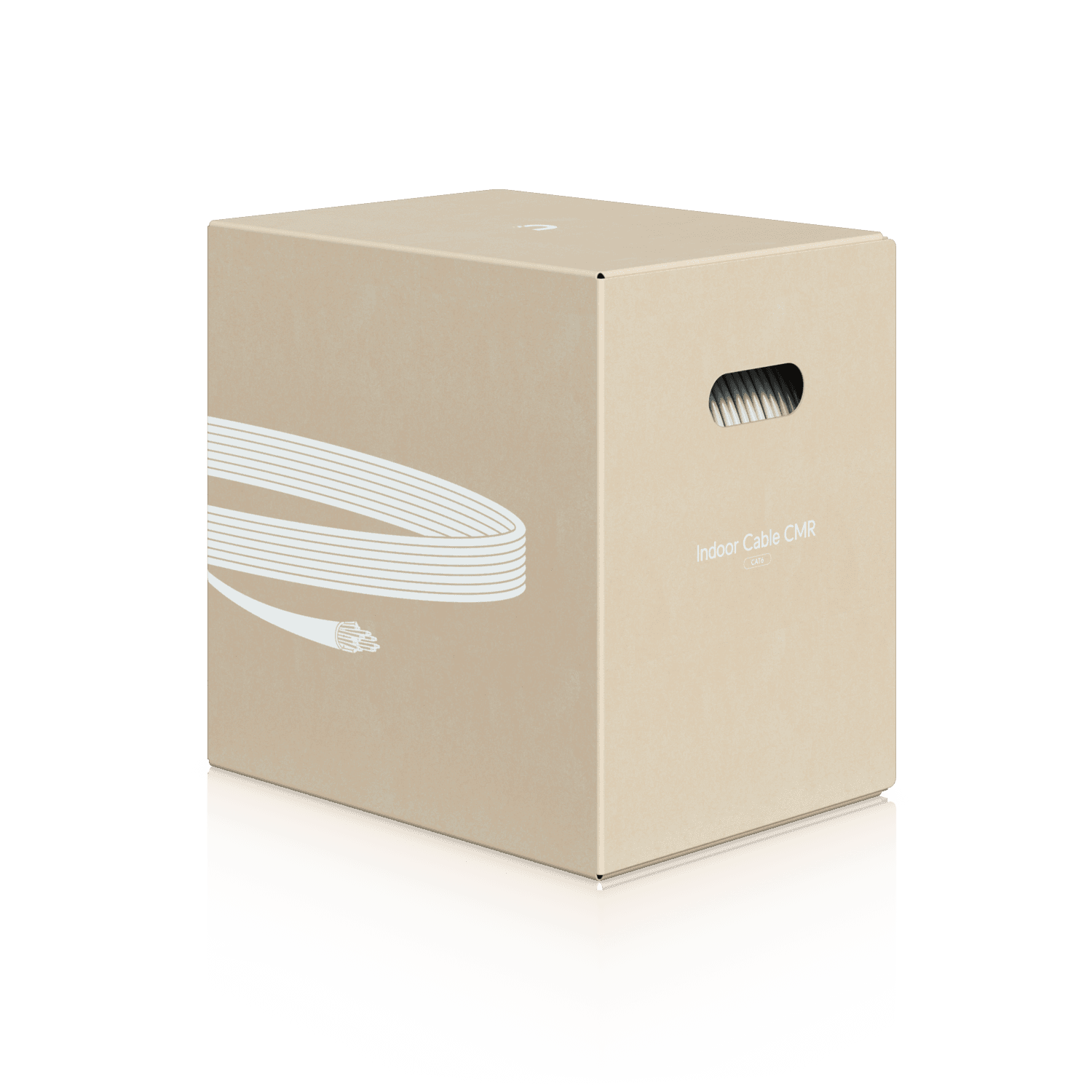

UniFi Indoor Cable CMR
$210.09
GST incl.
UniFi Indoor Cable CMP
U-Cable-C6-CMP
$366.05
GST incl.
Category 6 Ethernet cable for high-speed deployments located in environments that require plenum-rated cabling.

Category 6 UTP communications multipurpose cable

Plenum (CMP)-rated, fire-resistant jacket

Anti-crosstalk divider

Cable length 305 m

Technical Specifications
Mechanical
Box dimensions474 x 346 x 458 mm (18.7 x 13.6 x 18")
Box weight14.8 kg (32.5 lb)
Cable length305 m (1000 ft)
Cable colorWhite
Cable typeCategory 6
Shielding typeUTP
Flame ratingCMP
Conductor wire gauge23 AWG
Conductor typeSolid bare copper
Jacket materialLow smoke flame retardant PVC
Jacket diameter5.6 ± 0.2 mm
Bend radiusMin. 22.4 mm
Pulling tensionMax. 110 N
Storage temperature-20 to 75°C (-4 to 167°F)
Installation temperature0 to 60°C (32 to 140°F)
Ambient operating temperature-20 to 60°C (-4 to 140°F)
Anti-crosstalk dividerYes
RipcordYes
Data rate10/100/1000 Base-T
Reference bandwithUp to 600 MHz
StandardsElectrical transmission:
ANSI/TIA-568-C.2 (2009)
ISO/IEC 11801 (Edition 2.2)
IEC 61156-5 (Edition 2.1)

Flame test: NFPA 262 (CMP)

Material and construction:
UL 444
CSA 22.2 NO.214
EU Directive 2011/65/EU (RoHS2)
EU Directive 2006/95/EC (LVD)
